PSU 4Way Series Ultra Low Profile 1 3/4″ New Pump

Company
This field is for validation purposes and should be left unchanged.

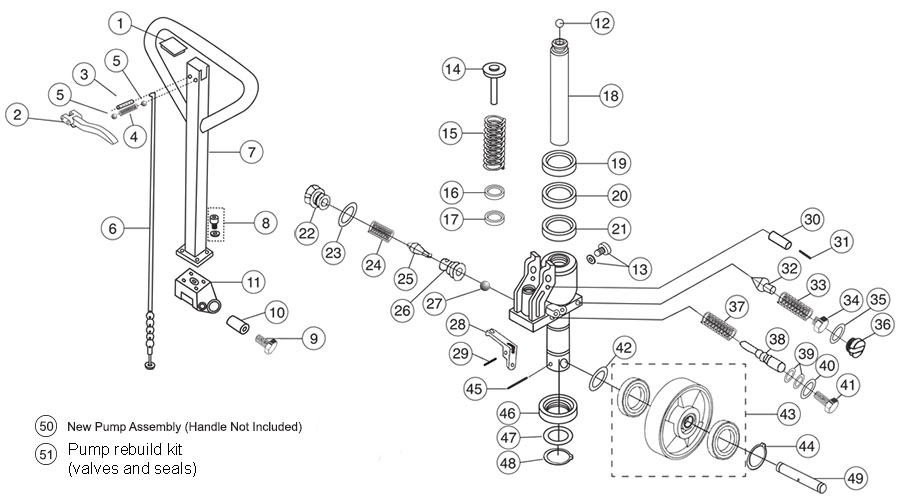

Pump Diagram
Click Here For Frame Parts
Item - Part Number - Description
[1] - PS80274E - Handle Cap Quantity
Price: $5.00
[2] - PS80274B - Control Lever Quantity
Price: $10.00
[3] - PL20269 - Split Pin Quantity
Price: $5.00
[4] - PS80274C - Spring Quantity
Price: $10.00
[5] - PS80254 - Ball Quantity
Price: $5.00
[6] - PS80274A - Control Rod Assembly (includes rod, chain, adjustment bolt & adjustment nut) Quantity
Price: $55.00
[7] - PS80274 - Complete Handle Assembly Quantity
Price: $30.00
[8] - PS80274F - Handle Bolt (includes washer) Quantity
Price: $5.00
[9] - PS80275A - Handle Bracket Bolt Quantity
Price: $7.00
[10] - PS80203A - Handle Bracket Bolt Bushing Quantity
Price: $5.00
[11] - PS80274H - H-Bracket Quantity
Price: $15.00
[12] - PS80244 - Lift Piston Ball Quantity
Price: $5.00
[13] - PS80267 - Plug Bolt (includes washer) Quantity
Price: $5.00
[14] - PS80250 - Pump Piston Quantity
Price: $20.00
[15] - PS80253 - Handle Return Spring Quantity
Price: $25.00
[16] - PS80252 - Pump Piston Seal- (Included in Seal Kit) Quantity
Price: $0.00
[17] - PS80251 - Pump Piston Wiper Ring- (Included in Seal Kit) Quantity
Price: $0.00
[18] - PS80243 - Main Lift Piston Quantity
Price: $25.00
[19] - PS80245 - Top Seal (Wiper Ring)- (Included in Seal Kit) Quantity
Price: $5.00
[20] - PS80249 - Upper Seal (Energized Seal) - (Included in Seal Kit) Quantity
Price: $7.00
[21] - PS80246 - Main Seal- (Included in Seal Kit) Quantity
Price: $5.00
[22] - PS90101 - Screw- (Included In Valve Kit) Quantity
Price: $0.00
[23] - PS90102 - Seal Washer- (Included In Valve Kit) Quantity
Price: $0.00
[24] - PS90103 - Spring- (Included In Valve Kit) Quantity
Price: $0.00
[25] - PS90104 - Valve Spindle- (Included In Valve Kit) Quantity
Price: $0.00
[26] - PS90105 - Cone Valve- (Included In Valve Kit) Quantity
Price: $0.00
[27] - PS90106 - Ball- (Included In Valve Kit) Quantity
Price: $0.00
[28] - PS80268N - Release Lever Quantity
Price: $5.00
[29] - PS80268S - Split Pin Quantity
Price: $5.00
[30] - PS80274R - Roller Quantity
Price: $5.00
[31] - PS80277A - Split Pin Quantity
Price: $5.00
[32] - PS70101 - Safety Valve Spindle- (Included in Safety Valve Kit) Quantity
Price: $0.00
[33] - PS70102 - Safety Valve Spring- (Included in Safety Valve Kit) Quantity
Price: $0.00
[34] - PS70103 - Adjusting Bolt- (Included in Safety Valve Kit) Quantity
Price: $0.00
[35] - PS70104 - O-Ring- (Included in Safety Valve Kit) Quantity
Price: $0.00
[36] - PS70105 - Screw- (Included in Safety Valve Kit) Quantity
Price: $0.00
[37] - PS90107 - Spring- (Included In Valve Kit) Quantity
Price: $0.00
[38] - PS90108 - Release Pin- (Included In Valve Kit) Quantity
Price: $0.00
[39] - PS90109 - O-Ring- (Included In Valve Kit) Quantity
Price: $0.00
[40] - PS90110 - O-Ring- (Included In Valve Kit) Quantity
Price: $0.00
[41] - PS90111 - Release Pin Nut- (Included In Valve Kit) Quantity
Price: $0.00
[42] - PS80239 - Washer Quantity
Price: $5.00
[43] - Steer Wheel With Bearing Quantity
Price: $0.00
PS80236PS - Poly Steel Wheel with Bearing Quantity
Price: $30.00
PS80236PN - Poly Nylon Wheel with Bearing Quantity
Price: $30.00
PS80236S - Steel Wheel with Bearing Quantity
Price: $30.00
PS80236N - Nylon Wheel with Bearing Quantity
Price: $25.00
[44] - PS80237 - Snap Ring Quantity
Price: $5.00
[45] - PL10242 - Split Pin Quantity
Price: $5.00
[46] - PS80234B - Thrust Bearing Quantity
Price: $20.00
[47] - PS80234A - Thrust Bearing Washer Quantity
Price: $10.00
[48] - PS80235 - Thrust Bearing Retaining Ring Quantity
Price: $5.00
[49] - PS80240 - Steer Wheel Axle Quantity
Price: $75.00
[50] - PS80288N - New Style Pump Assembly (handle not included) Quantity
Price: $165.00
[51] -PS80280 pump rebuild kit (valves and seals) Quantity
Price: $50.00
Frame Diagram
Click Here For Pump Parts
Item - Part Number - Description
[1] - PS80232 - Screw Quantity
Price: $5.00
[2] - PSM80203 - 33" WIDE Torsion Bar with Bushings Quantity
Price: $55.00
[3] - PS80303 - Torsion Bar Bushing Quantity
Price: $5.00
[4] - GREASE FITTINGS Quantity
Price: $5.00
[5] - PS80207 - Thrust Plate Shoulder Pin Quantity
Price: $7.00
[6] - PS80206 - Thrust Plate Shoulder Pin Bushing Quantity
Price: $5.00
[7] - PSM80231C - Low Profile Thrust Plate Quantity
Price: $35.00
[8] - PS80227E - Eye Bolt Pin Quantity
Price: $35.00
[9] - PL20269 - Split Pin Quantity
Price: $5.00
[10] - PS80204P - Bulkhead Pin Quantity
Price: $5.00
[11] - PL20269 - Split Pin Quantity
Price: $5.00
[12] - PS80226 - Eye bolt and nut Quantity
Price: $10.00
[13] - PSM80224-48U - 48" Pushrod Quantity
Price: $125.00
[14] - PS80206 - Bushing Quantity
Price: $5.00
[15] - PSM80215B - Axle Bolt Quantity
Price: $0.00
[16] - PSM80215O - Axle Sleeve Quantity
Price: $0.00
[17] - PSM80218 - Axle Nut Quantity
Price: $0.00
[18] - PSM80215 - Load Roller Axle (includes bolt, sleeve & nut) Quantity
Price: $15.00
[19] - PSM80210U - Steel Roller with Bearings Quantity
Price: $40.00
[20] - PS80216 - Washer Quantity
Price: $5.00
[21] - PSM80212U - Ultra Low Lever Arm Assembly with bushings Quantity
Price: $45.00
[22] - PS80203 - Bushing Quantity
Price: $5.00
[23] - PL20269 - Split Pin Quantity
Price: $5.00
[24] - PSM80219 - Fork Pin Quantity
Price: $25.00
